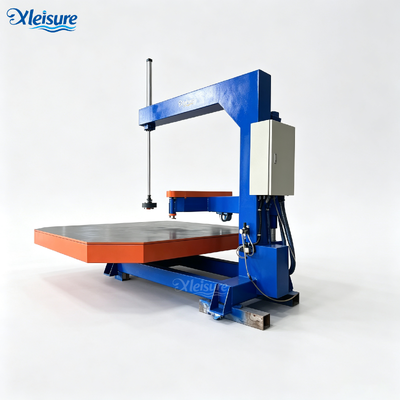

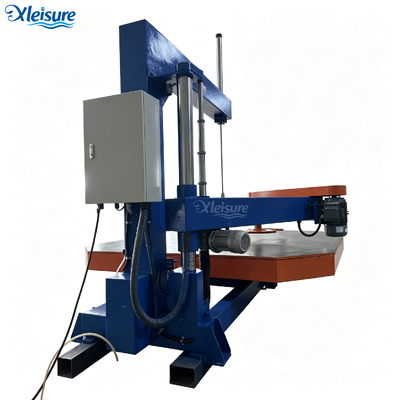

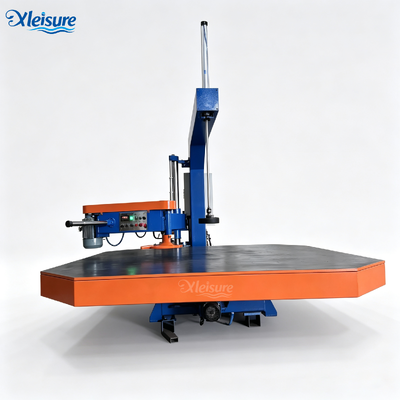

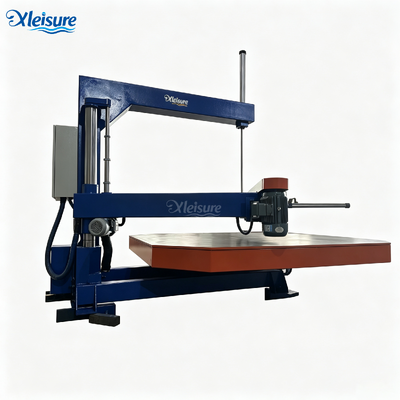

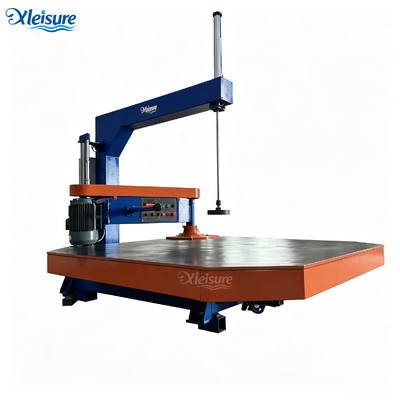

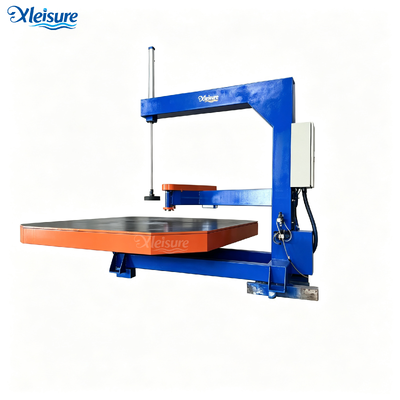

Rotary Table Edge Trimming Machine Semi Automatic Hot Tub Spa Tub Fiberglass Shell Edge Digital Display Trimming Equipment

Large Image : Rotary Table Edge Trimming Machine Semi Automatic Hot Tub Spa Tub Fiberglass Shell Edge Digital Display Trimming Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	Xleisure
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	7463
Delivery Time:	40days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Application:	Hot Tub/spa Shell	Product Name:	Rotary Hot Tub Spa Trimmer
Total Power:	4 KW	Cutting Height Range:	20mm - 800mm
Speed Range:	0.2 RPM -2 RPM	Packing Dimensions:	3200mm 2150mm 1300mm (H)
Gross Weight:	Approx. 1300 KGS

Product Description

Features:

emi-automatic cutting, easy & efficient trimming for varied shapes & heights;
precision level cutting to have flat shell edge;
manual guide for diverse cutting of different shells, versatile applications;
adjustable shell-edge cutting height: 20mm ~ 800mm (from shell top to trimmed edge);
applicable hot tub dimensions: 2500mm L * 2500mm W (maximum);
hot tub shell clamping: 250mm ~ 1050mm (overall shell height range);
protection shield on the saw blade, and guide rollers for smooth cutting;

Item	Specification
Power Requirement	3 phase AC380V, reliable ground and neutral wire
Air Source Requirement	Compressed air pressure 0.35~0.4Mpa
Total Power	4 kW
Rotary Table Driving Motor	0.55 kW
Cutting Machine Driving Motor	3.0 kW
Cutting Machine Lifting Driving Motor	0.37 kW
Rotary Table Surface Area	PVC tabletop, 2440×2440 mm (corner cut)
Rotary Table Load Capacity	150 KG
Rotary Table Rotation Speed	Stepless speed regulation by frequency converter, 0.2~2 rpm
Platform Bearing	Φ526 mm
Rotary Swing Arm Travel	40~700 mm
Compressor Travel	260mm
Compressor Driving Cylinder	SC50×800
Max. Cutting Height	20~800mm
Cutting Blade Diameter	Φ400 mm
Control Mode	Manual

Detail Show

Rotary Table Edge Trimming Machine Semi Automatic Hot Tub Spa Tub Fiberglass Shell Edge Digital Display Trimming Equipment
